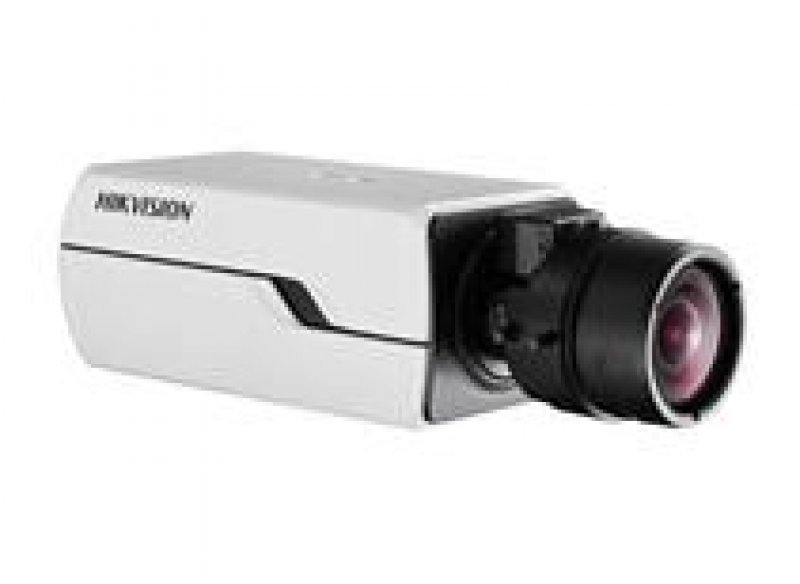

haikon DS-2CD40C5F4K Smart Box Camera

ankara kamera sistemi setleri

  • haikon DS-2CD40C5F4K Smart Box Camera

haikon DS-2CD40C5F4K Smart Box Camera


    Görüntü Sensörü: | 1/1.7" Progressive Scan CMOS
    İşaret Sistemi: | PAL/NTSC
    Minimum Aydınlatma: | Color: 0.01 Lux @ (F1.2, AGC ON),
     B/W: 0.001 Lux @ (F1.2, AGC ON)
    Objektif Hızı: | 1s ~ 1/100,000s
    Slow shutter: | Support
    Lens Kurulumu: | C/CS mount
    Oto-iris: | DC drive
    Gündüz & Gece: | IR cut filter with auto switch
    Geniş Dinamik Aralık: | Digital WDR
    Sıkıştırma Standardı
    Video Sıkıştırma: | H.264/MJPEG
    H.264 Türü: | Baseline Profile / Main Profile / High Profile
    Video Bit Hızı: | 32Kbps~16Mbps
    Ses Sıkıştırma: | G.711/G.722.1/G.726/MP2L2
    Ses Bit Hızı: | 64Kbps(G.711) / 16Kbps(G.722.1) / 16Kbps(G.726) / 32-128Kbps(MP2L2)
    Üçüncü Akım: | Yes
    Görüntü
    Maksimum Çözünürlük: | 4000 × 3000
    Çerçeve Hızı: | 50Hz: 15fps (4000 × 3000), 22fps (4096 × 2160), 25fps (3840 × 2160, 3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720)
    60Hz: 15fps (4000 × 3000), 22fps (4096 × 2160), 24fps (3840 × 2160), 30fps (3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720)
    Üçüncül Akış: | Independent with Main Stream and Sub Stream, up to
    50Hz: 10fps(1280 × 720)
    Görüntü İyileştirme: | BLC/3D DNR/ROI/Defog
    Görüntü Ayarlama: | Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser
    Bölgesel Kırpma: | Support
    BLC: | Yes, zone configurable
    HLC: | Support
    Akıllı Buğu Giderme: | Support
    ROI: | Support
    3D DNR: | Support
    Resim Yerleşimi: | LOGO picture can be overlaid on video with 128x128 24bit bmp format
    Gündüz / Gece Anahtarı: | Auto/Schedule/Triggered by Alarm In
    Ağ Depolama: | NAS (Support NFS,SMB/CIFS), ANR
    Alarm Trigger: | Motion detection, tampering alarm, network disconnect , IP address conflict, storage exception
    Protokoller: | TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
    Güvenlik: | User Authentication, Watermark, IP address filtering, Anonymous access
    Sistem Uyumluluğu: | ONVIF (Profile S, Profile G), PSIA, CGI, ISAPI
    Arayüzü
    Ses: | 1-ch 3.5 mm audio in( Mic in/Line in)/out interface, 1 build-in Microphone
    Ses Girişi: | 1-ch 3.5 mm audio interface, Mic in/Line in. 1 built-in Microphone
    Ses Çıkışı: | 1-ch 3.5mm audio interface
    İletişim Arayüzü: | 1 RJ45 10M/100M Ethernet port, 1 RS-485 interface and 1 RS-232 interface
    Alarm: | 1 input, 1 output (up to DC24V 1A or AC110V 500mA)
    Alarm Girişi: | 1
    Alarm Çıkışı: | 1
    Video Çıkışı: | 1Vp-p Composite Output (75 Ω, BNC)
    Dahili Depolama: | Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
    Reset Butonu: | Yes
    Ses
    Çevre Gürültü Filtreleme: | Support
    Ses I / O: | Support dual audio track, stereo
    Ses Örnekleme Hızı: | 16kHz / 32kHz / 44.1kHz / 48kHz
    Akıllı Özellik-set
    Davranış Analizi: | Line crossing detection, Intrusion detection, Region entrance, Region exiting, Unattended baggage, Object removal
    Sınır İhlali: | Cross a pre-defined virtual line
    Saldırı Algılama: | Enter and loiter in a pre-defined virtual region
    Bölge Giriş: | Enter a pre-defined virtual region from the outside place
    Bölge Çıkma: | Exit from a pre-defined virtual region
    Bırakılan Eşya: | Objects left over in the pre-defined region such as the baggage, purse, dangerous materials
    Alınan Eşya: | Objects removed from the pre-defined region, such as the exhibits on display.
    İstisna Algılamaları: | Scene change detection, Sudden audio increase/decrease detection, Audio loss detection, Defocus detection
    Tanıma: | Face detection recognition
    İstatistik: | Object Counting (Entrance and Exit object number is accounted and showed on screen in real time)
    Genel
    Çalışma Sıcaklığı: | -30 °C ~ 60 °C (-22 °F ~ 140 °F)
    Humidity 95% or less (non-condensing)
    Güç Kaynağı: | 24VAC± 10%, 12 VDC ± 10%, PoE (802.3af)
    GÜç Tüketimi: | Max. 6 W (Max. 9W with IR cut filter on)
    Boyutlar: | 69.8×58×145 mm (2.75” × 2.28” × 5.71”)
    Ağırlık: | 830 g (1.83 lbs)
