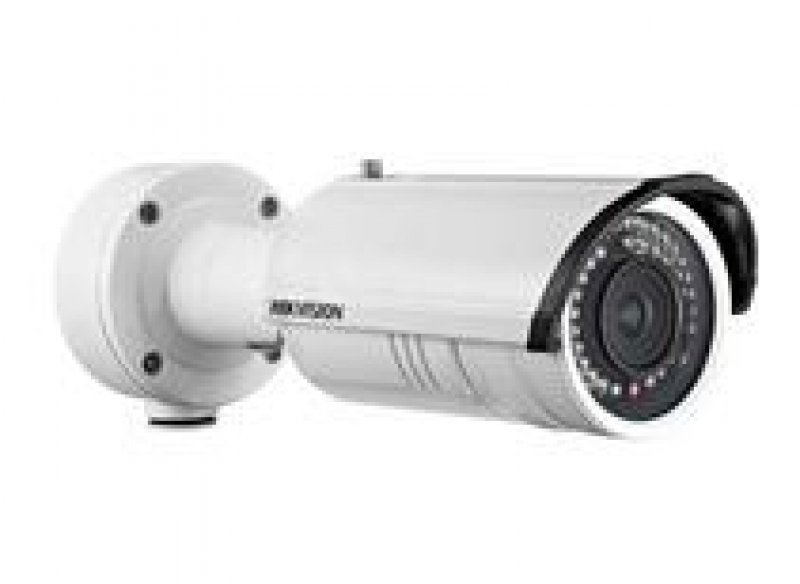

haikon DS-2CD4212F-I(Z)(H)(S)1.3MP Low-light IR Bullet Camera

Açıklama

Sıkıştırma Standardı
Görüntü Sensörü:	\|	1/3" Progressive Scan CMOS
İşaret Sistemi:	\|	PAL/NTSC
Minimum Aydınlatma:	\|	0.01 Lux @ (F1.2, AGC ON), 0 lux with IR 0.014 Lux @ (F1.4, AGC ON), 0 lux with IR
Objektif Hızı:	\|	1 s to 1/100,000 s
Lens:	\|	No -Z: 2.8-12mm @ F1.4, angle of view: 98.4°-30.2° 8-20mm @ F1.6, angle of view: 35.5°-14.7°(optional) -Z: 2.8-12mm @ F1.4, angle of view: 98.4°-30.2° 8-32mm @ F1.4, angle of view: 27.8°-9.1°(optional)
Lens Kurulumu:	\|	φ14
Oto-iris:	\|	DC drive
Gündüz & Gece:	\|	IR cut filter with auto switch
Geniş Dinamik Aralık:	\|	Digital WDR
Dijtal Gürültü Azaltma:	\|	3D DNR
Odak:	\|	Motorized VF lens(-Z model)
Video Sıkıştırma:	\|	H.264/MPEG4/MJPEG
Video Bit Hızı:	\|	32Kbps~16Mbps
Ses Sıkıştırma:	\|	-S: G.711/G.722.1/G.726/MP2L2
Üçüncü Akım:	\|	Yes
Görüntü
Maksimum Çözünürlük:	\|	1280 × 1024
Çerçeve Hızı:	\|	50Hz: 25fps (1280 × 1024),25fps (1280 × 960), 50fps (1280 × 720) 60Hz: 30fps (1280 × 1024),30fps (1280 × 960), 60fps (1280 × 720)
Üçüncül Akış:	\|	Independent with Main Stream and Sub Stream, up to 50Hz: 25fps (1280 × 1024) 60Hz: 30fps (1280 × 1024)
Görüntü Ayarlama:	\|	Rotate mode, Saturation, Brightness, Contrast adjustable by client software or web browser
BLC:	\|	Support
HLC:	\|	Support
Akıllı Buğu Giderme:	\|	Support
EIS:	\|	Support
ROI:	\|	Support
Resim Yerleşimi:	\|	128 × 128, BMP 24bit, zone configurable
Ağ
Ağ Depolama:	\|	NAS (Support NFS,SMB/CIFS)
Alarm Trigger:	\|	Line crossing detection, Intrusion detection, Defocus detection, Scene change detection, Motion detection, Face detection, Dynamic analysis, Tampering alarm, Network disconnect, IP address conflict, Storage exception
Protokoller:	\|	TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP, PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv6,Bonjour(SIP optional)
Güvenlik:	\|	User Authentication, Watermark, IP address filtering, anonymous access, flickerless, heartbeat, video mask
Sistem Uyumluluğu:	\|	ONVIF (Profile S, Profile G), PSIA, CGI, ISAPI
Arayüzü
İletişim Arayüzü:	\|	1 RJ45 10M / 100M Ethernet interface
Dahili Depolama:	\|	Built-in Micro SD/SDHC/SDXC card slot, up to 64 GB
Genel
Çalışma Sıcaklığı:	\|	-30 °C – 60 °C (-22 °F – 140 °F) Humidity 95% or less (non-condensing) -H: -40 °C – 60 °C (-40 °F – 140 °F) with smart heater on
Güç Kaynağı:	\|	12 VDC ± 10%, PoE (802.3af)
GÜç Tüketimi:	\|	Max. 11 W -Z/-H: Max. 12W
Weather Proof:	\|	IP66
IR Aralık:	\|	2.8-12mm: Approx. 20 to 30 meters; 8-20mm/8-32mm: Approx. 50 to 80 meters
Boyutlar:	\|	98 × 105 × 328.8 mm (3.86” × 4.13” × 12.94”)
Ağırlık:	\|	2000 g (4.41 lbs)
NOT:	\|	* "-S" series support 1-ch audio I/O, 1-ch alarm I/O and 1-ch RS-485 interface
