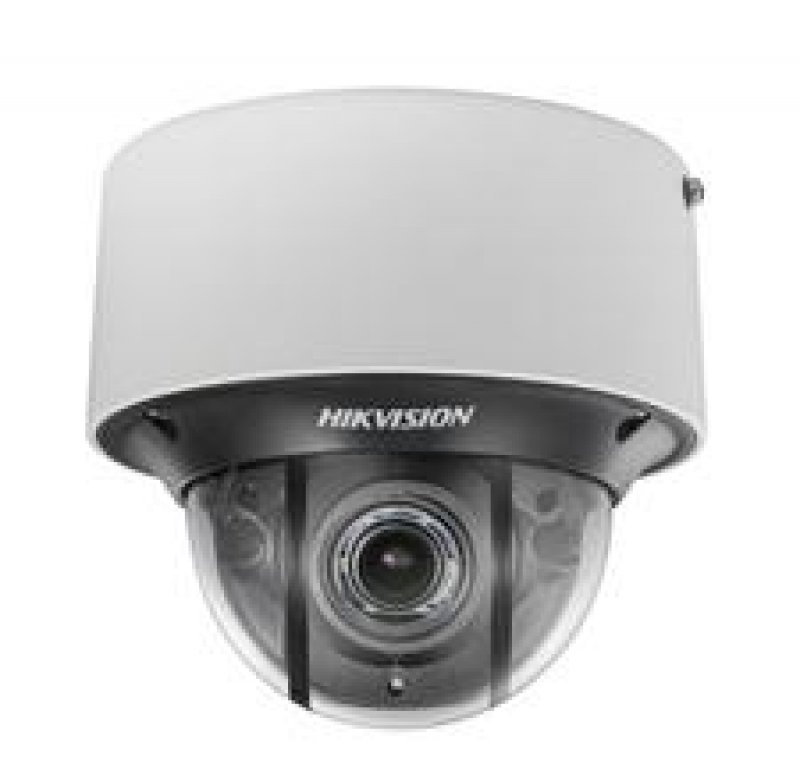

haikon DS-2CD4585F-I(Z)(H)4K Smart Outdoor Dome Camera

Açıklama

Sıkıştırma Standardı
Görüntü Sensörü:	\|	1/1.7" Progressive Scan CMOS
İşaret Sistemi:	\|	PAL/NTSC
Minimum Aydınlatma:	\|	0.009 Lux @ (F1.2, AGC ON), 0.012Lux @ (F1.4, AGC ON), 0 Lux with IR
Objektif Hızı:	\|	1s ~ 1/100,000s
Slow shutter:	\|	Support
Lens:	\|	2.8~12mm @ F1.4, 96.0°~32.6°
Lens Kurulumu:	\|	φ14
Oto-iris:	\|	DC drive
Ayarlanan Aralık:	\|	Pan: 0°~355°, tilt: 0°~75°,rotation: 0°~355°
Gündüz & Gece:	\|	IR cut filter with auto switch
Geniş Dinamik Aralık:	\|	Digital WDR
Video Sıkıştırma:	\|	H.264/MJPEG
H.264 Türü:	\|	Baseline Profile / Main Profile / High Profile
Video Bit Hızı:	\|	32Kbps~16Mbps
Ses Sıkıştırma:	\|	G.711/G.722.1/G.726/MP2L2
Ses Bit Hızı:	\|	64Kbps(G.711) / 16Kbps(G.722.1) / 16Kbps(G.726) / 32-128Kbps(MP2L2)
Üçüncü Akım:	\|	Yes
Görüntü
Maksimum Çözünürlük:	\|	4096 × 2160
Çerçeve Hızı:	\|	50Hz: 22fps (4096 × 2160), 25fps (3840 × 2160, 1920 × 1080, 1280 × 720) 60Hz: 22fps (4096 × 2160), 24fps (3840 × 2160), 30fps(1920 × 1080, 1280 × 720)
Üçüncül Akış:	\|	Independent with Main Stream and Sub Stream, up to 50/60Hz: 10fps(1280 × 720)
Görüntü İyileştirme:	\|	BLC/3D DNR/ROI/Defog
Görüntü Ayarlama:	\|	Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser
Görüntü Düzeltme:	\|	Support (-Z)
Bölgesel Kırpma:	\|	Support
Resim Yerleşimi:	\|	LOGO picture can be overlaid on video with 128x128 24bit bmp format
Gündüz / Gece Anahtarı:	\|	Auto/Schedule/Triggered by Alarm In
Ağ
Ağ Depolama:	\|	NAS (Support NFS,SMB/CIFS), ANR
Alarm Trigger:	\|	Motion detection, tampering alarm, network disconnect , IP address conflict, storage exception
Protokoller:	\|	TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
Güvenlik:	\|	User Authentication, Watermark, IP address filtering, Anonymous access
Sistem Uyumluluğu:	\|	ONVIF (Profile S, Profile G), PSIA, CGI, ISAPI
Arayüzü
Ses:	\|	1-ch 3.5 mm audio in (Mic in/Line in)/out interface
Ses Girişi:	\|	1-ch 3.5 mm audio interface, MIC IN/LINE IN
Ses Çıkışı:	\|	1-ch 3.5mm audio interface
İletişim Arayüzü:	\|	1 RJ45 10M/100M/1000M Ethernet port, 1 RS-485 interface
Alarm:	\|	1 input, 1 output (up to DC24V 1A or AC110V 500mA )
Alarm Girişi:	\|	1
Alarm Çıkışı:	\|	1
Video girişi:	\|	1 RJ12 interface
Video Çıkışı:	\|	1Vp-p Composite Output (75 Ω, BNC)
Dahili Depolama:	\|	Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
Reset Butonu:	\|	Yes
Ses
Çevre Gürültü Filtreleme:	\|	Support
Ses I / O:	\|	Support dual audio track, stereo
Ses Örnekleme Hızı:	\|	16kHz / 32kHz / 44.1kHz / 48kHz
Akıllı Özellik-set
Davranış Analizi:	\|	Line crossing detection, Intrusion detection, Region entrance, Region exiting, Unattended baggage, Object removal
Sınır İhlali:	\|	Cross a pre-defined virtual line
Saldırı Algılama:	\|	Enter and loiter in a pre-defined virtual region
Bölge Giriş:	\|	Enter a pre-defined virtual region from the outside place
Bölge Çıkma:	\|	Exit from a pre-defined virtual region
Bırakılan Eşya:	\|	Objects left over in the pre-defined region such as the baggage, purse, dangerous materials
Alınan Eşya:	\|	Objects removed from the pre-defined region, such as the exhibits on display.
İstisna Algılamaları:	\|	Scene change detection, Sudden audio increase/decrease detection, Audio loss detection, Defocus detection
Tanıma:	\|	Face detection recognition
İstatistik:	\|	Object Counting (Entrance and Exit object number is accounted and showed on screen in real time)
Genel
Çalışma Sıcaklığı:	\|	-30 °C – 60 °C (-22 °F – 140 °F), Humidity 95% or less (non-condensing), -H: -40 °C – 60 °C
Güç Kaynağı:	\|	DC12V/AC24V/PoE(802.3af) , -H: DC12V/AC24V/PoE(802.3at)
GÜç Tüketimi:	\|	Max. 12 W; -H: 17W
Darbe Koruma:	\|	IK10
Weather Proof:	\|	IP66
Boyutlar:	\|	Φ164.9×127 mm (Φ6.49” × 5”)
Ağırlık:	\|	2100 g ( 4.63 lbs)
