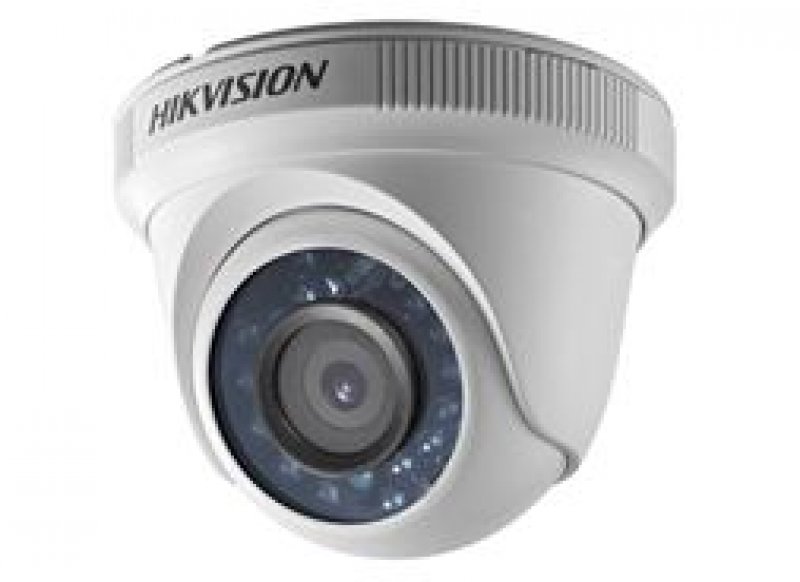

haikon DS-2CE56D1T-IRHD1080P IR Turret Camera

Menü
Görüntü Sensörü:	\|	2MP CMOS Image Sensor
İşaret Sistem:	\|	PAL/NTSC
Etkin Piksel:	\|	976 (H) × 582 (V)
Minimum Aydınlatma:	\|	0.01 Lux @ (F1.2,AGC ON),0 Lux with IR
Objektif Zamanı:	\|	1/25(1/30) s to 1/50,000 s
Lens:	\|	3.6mm, 6mm optional, Angle of View: 91.3°(3.6mm), 59.9°(6mm)
Lens Montaj :	\|	M12
Ayarlama Aralık:	\|	Pan: 0 - 360°, Tilt: 0 - 75°, Rotation: 0 - 360°
Gündüz ve Gece:	\|	IR cut filter with auto switch
Video Çerçeve Hızı:	\|	1080p@25fps/1080p@30fps
HD Video Çıkışı:	\|	1 Analog HD output
Senkronizasyon:	\|	Internal Synchronization
S / N Oranı:	\|	More than 62 dB
Coax üzerinden:	\|	Support
Kamera ID:	\|	On/Off (0-254)
D / N Modu:	\|	Color/ BW/ Auto/ EXT
Otomatik Beyaz Dengesi:	\|	Auto/User/Push/8000K/6000K/4200K/3000K
Gizlilik Maskesi:	\|	On/Off, maximum 8 zones
Hareket Algılama:	\|	On/Off, maximum 4 zones
BLC:	\|	On/Off
AGC:	\|	Support
Anti-flicker:	\|	On/ Off
Dil:	\|	English/Chinese
Fonksiyon:	\|	Digital noise reduction, Mirror
Genel
Çalışma Sıcaklığı:	\|	-40 °C - 60 °C (-40 °F - 140 °F) Humidity 90% or less (non-condensing)
Güç Kaynağı:	\|	12 V DC ± 10%, 24 V AC ± 10%
Güç Tüketim:	\|	Max. 4W
Weather Proof:	\|	IP66
IR Aralık:	\|	Up to 20m
Communication :	\|	Up the coax Protocol: HIKVISION-C(Coaxitron)
Boyutlar:	\|	Φ89.5 × 69.8 mm(Φ3.52” × 2.75”)
Ağırlık:	\|	400g (0.88 lb)
