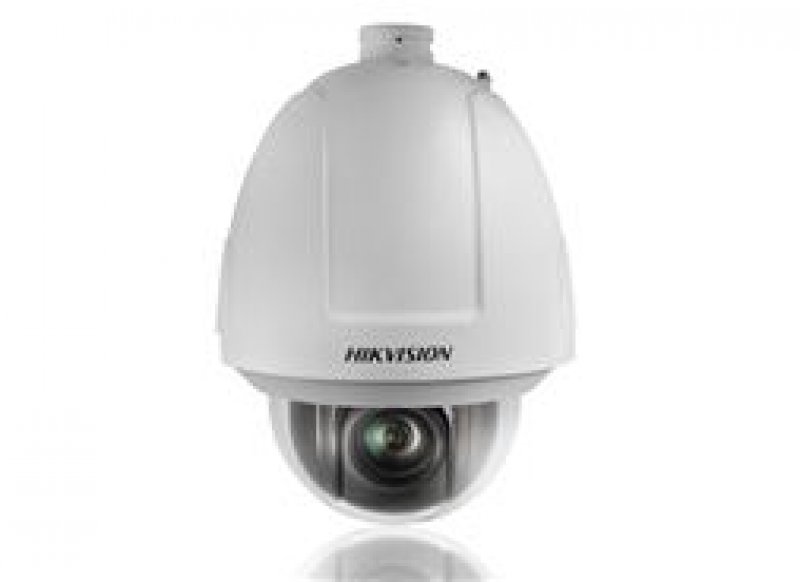

haikon DS-2DF5283 series2MP WDR Network Speed Dome

Açıklama

Lens
Görüntü Sensörü:	\|	1/2.8" Progressive Scan CMOS
Etkin Piksel:	\|	1920(H)x1080(V)
İşaret Sistemi:	\|	PAL/NTSC
Minimum Aydınlatma:	\|	High sensitivity: Color: 0.5Lux@F1.6,B/W: 0.08Lux@F1.6 Normal: Color: 1.7Lux@F1.6 ,B/W: 0.26Lux@F1.6
Beyaz Dengesi:	\|	Auto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp
AGC:	\|	Auto/Manual
S / N Oranı:	\|	≥ 50dB
BLC:	\|	ON/OFF
Buğu Giderme:	\|	Support
WDR:	\|	Support
Objektif Zamanı:	\|	50Hz: 1-1/30,000s 60Hz: 1-1/30,000s
Gündüz ve Gece:	\|	ICR
Dijital Yakınlaştırma:	\|	16X
Gizlilik Maskesi:	\|	24 privacy masks programmable; optional multiple colors and mosaics
Otomatik Odak:	\|	Auto / Semi-automatic / Manual
Odaksal Uzunluk:	\|	4.7-94mm, 20x
Yakınlaştırma Hızı:	\|	Approx.2.3s(Optical Wide-Tele)
Görüş Açısı:	\|	55.4-2.9 degree (Wide-Tele)
Minimum Çalışma Mesafesi:	\|	10-1000mm(Wide-Tele)
Aralık Açıklık:	\|	F1.6-F3.5
Pan & Tilt
Pan Aralığı:	\|	360°endless
Pan Hızı:	\|	Pan Manual Speed: 0.1° -300°/s, Pan Preset Speed: 540°/s
Tilt Aralığı:	\|	-5°~90° (Auto Flip )
Tilt Hızı:	\|	Tilt Manual Speed: 0.1°-240°/s, Tilt Preset Speed: 400°/s
Orantısal Yakınlaştırma:	\|	Rotation speed can be adjusted automatically according to zoom multiples
Ön Ayar Sayısı:	\|	300
Devriye:	\|	8 patrols, up to 32 presets per patrol
Otomatik Tur:	\|	4 patterns, with the recording time not less than 10 minutes per pattern
Güç kaybolması geri getirme:	\|	Support
Park Eylemi:	\|	Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan
PTZ Pozisyonlama Gösterimi:	\|	ON/OFF
Dondurmak Çerçeve:	\|	Support
Alarm
Alarm Girişi:	\|	7 Inputs
Alarm Çıkışı:	\|	2 channel relay output, with configurable alarm actions
Alarm Eylemi:	\|	Preset, patrol, pattern, SD/SDHC card recording, relay output, notifi cation on client
Girişi ve Çıkışı
Monitör Çıkışı:	\|	1.0Vp-p / 75Ω, NTSC (or PAL) composite, BNC
Ses Girişi:	\|	1 Mic in/Line in interface Line input: 2-2.4V[p-p]; output impedance: 1KΩ, ±10%
Ses Çıkışı:	\|	Line level, impendance: 600Ω
Ağ
Ethernet:	\|	10Base -T, /100Base-TX, RJ45 Connector
Maksimum Görüntü Çözünürlüğü:	\|	1920×1080
Ana Akış:	\|	50Hz: 25fps(1920×1080), 25fps(1280×960), 25fps (1280×720) 60Hz: 30fps(1920×1080), 30fps(1280×960), 30fps (1280×720)
Alt Akış:	\|	50Hz: 25fps(704×576), 25fps (352×288), 25fps (176×144) 60Hz: 30fps(704×480), 30fps (352×240), 30fps (176×120)
Üçüncü Akış:	\|	50Hz: 25fps(1920×1080), 25fps(1280×960), 25fps (1280×720), 25fps(704×576), 25fps (352×288), 25fps (176×144) 60Hz: 30fps(1920×1080), 30fps(1280×960), 30fps (1280×720), 30fps(704×480), 30fps (352×240), 30fps (176×120)
Görüntü Sıkıştırma:	\|	H.264/MJPEG/MPEG4, H.264 encoding with Baseline/Main/High profile
İlgi Bölgesi Kodlama:	\|	Support 24 areas with adjustable levels
Ses Sıkıştırma:	\|	G.711ulaw/G.711alaw/G.726/MP2L2/G.722
Protokoller:	\|	IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
Eş Zamanlı kullanıcıya:	\|	Up to 20 users
Üçlü Akış:	\|	Support
Mini SD Kart:	\|	Manual REC / Alarm REC. Built-in SD/SDHC Slot, up to 64GB Edge recording
Kullanıcı / Host Seviyesi:	\|	Up to 32 users,3 Levels: Administrator, Operator and User
Güvenlik önlemleri:	\|	User authentication (ID and PW), Host authentication (MAC address) IP address filtering
İstemci Arayüzü
Kamera Kontrolü:	\|	Pan/Tilt, Zoom, Focus, Click centering, Zoom by mouse dragging, Iris, preset calling and programming, auto mode
Tarih ve Saat Gösterimi:	\|	Time: Week: Date, 6 formats on the Client
İstemci:	\|	Support iVMS-4200
Web Sayfası:	\|	IE 7+, Chrome 18 +, Firefox 5.0 +, Safari 5.02 +, support multi-language
Genel
RS-485 Protocolleri:	\|	HIKVISION, Pelco-P, Pelco-D, self-adaptive
Menü Dili:	\|	English / Chinese
Güç Kaynağı:	\|	24V AC
Güç Tüketim:	\|	Outdoor dome: Max. 40W Indoor/In-ceiling dome: Max. 25W
Çalışma Sıcaklığı / Nem oranı:	\|	-30 ℃-65℃(-22℉-149℉)(outdoor dome) / -10℃-50℃(14℉-122℉)(indoor dome ) 90% or less
Koruma Seviyesi:	\|	IP66 standard (outdoor dome) TVS 4,000V lightning protection, surge protection and voltage transient protection
Montaj:	\|	Various mounting modes optional
Boyutlar:	\|	Φ220×325.5mm (Φ8.66”×12.81”)(Outdoor) Φ183.4×243mm(Φ7.22”×9.57”)(indoor) Φ245×236mm(Φ9.65”×9.29”)(indoor celing)
Ağırlık (yaklaşık):	\|	4Kg (8.82 Ibs)
Montaj Seçeneği:	\|	Long-arm wall mount: DS-1602ZJ;Corner mount: DS-1602ZJ-corner; Pole Mount: DS-1602ZJ-pole; Power box mount:DS-1602ZJ-box

hareketli speed dome kamera
