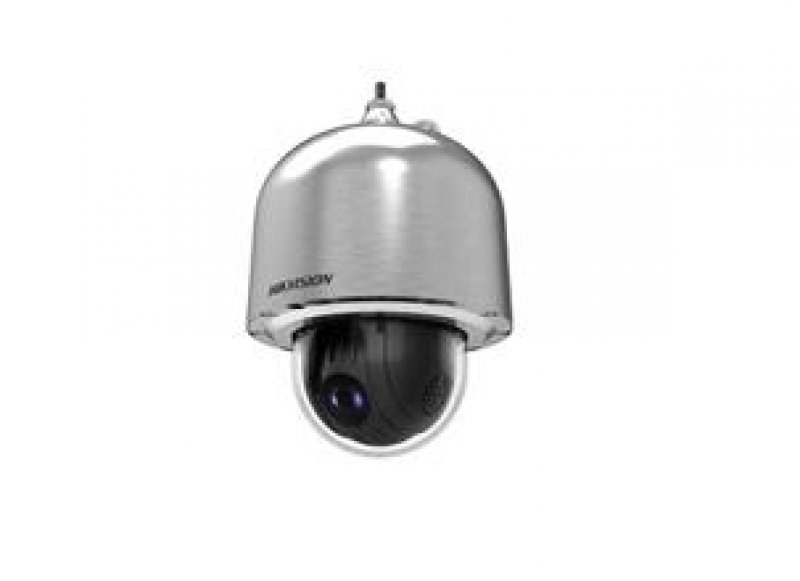

haikon DS-2DF6223-CX (W)2MP Explosion-Proof Network Speed Dome

Açıklama

Lens
Görüntü Sensörü:	\|	1/1.9" HD CMOS sensor
Etkin Piksel:	\|	1920(H)x1080(V)
İşaret Sistemi:	\|	PAL/NTSC
Minimum Aydınlatma:	\|	Color: 0.002 Lux @(F1.5, AGC ON) B/W: 0.0002 Lux @(F1.5, AGC ON)
Beyaz Dengesi:	\|	Auto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp
AGC:	\|	Auto/Manual
BLC:	\|	ON/OFF
HLC:	\|	Support
Buğu Giderme:	\|	Support
WDR:	\|	120dB
Objektif Zamanı:	\|	1/1 s to 1/30,000 s
Gündüz ve Gece:	\|	ICR
Dijital Yakınlaştırma:	\|	16×
Gizlilik Maskesi:	\|	24 privacy masks programmable; optional multiple colors and mosaics
Otomatik Odak:	\|	Auto / Semi-automatic / Manual
Odaksal Uzunluk:	\|	5.9 mm to 135.7 mm, 23× optical zoom
Yakınlaştırma Hızı:	\|	Approx. 7.4 s (Optical Lens, Wide-Tele)
Görüş Açısı:	\|	59.8° to 2.0° (Wide-Tele)
Minimum Çalışma Mesafesi:	\|	10 mm to 1500 mm (Wide-Tele)
Aralık Açıklık:	\|	F1.5 to F4.5
Pan & Tilt
Pan Aralığı:	\|	360°endless
Pan Hızı:	\|	Configurable, from 0.1°/s to 300°/s Preset Speed: 540°/s
Tilt Aralığı:	\|	Tilt: 0°~90°
Tilt Hızı:	\|	Configurable, from 0.1°/s to 240°/s Preset Speed: 400°/s
Orantısal Yakınlaştırma:	\|	Rotation speed can be adjusted automatically according to zoom multiples
Ön Ayar Sayısı:	\|	300
Devriye:	\|	8 patrols, up to 32 presets for each patrol
Otomatik Tur:	\|	4 pattern scans, record time over 10 minutes for each scan
Güç kaybolması geri getirme:	\|	Support
Park Eylemi:	\|	Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan
PTZ Pozisyonlama Gösterimi:	\|	ON/OFF
Dondurmak Çerçeve:	\|	Support
Otomatik Takip:	\|	Manual/ Panorama/ Intrusion trigger/ Line crossing trigger/ Region entrance trigger/ Region exiting trigger Smart tracking when patrol between multiple scenarios
Alarm
Alarm Girişi:	\|	7 Inputs
Alarm Çıkışı:	\|	2 channel relay output, with configurable alarm actions
Alarm Eylemi:	\|	Preset, Patrol, Pattern, Micro SD/SDHC card recording, Relay output, Notification on Client, Send Email, Upload to FTP, Trigger Channel
Girişi ve Çıkışı
Monitör Çıkışı:	\|	1.0Vp-p / 75Ω, NTSC (or PAL) composite, BNC
Ses Girişi:	\|	1 Mic in/Line in interface Line input: 2-2.4V[p-p]; output impedance: 1KΩ, ±10%
Ses Çıkışı:	\|	1 Audio output interface Line level, impedance: 600Ω
Ağ
Ethernet:	\|	10Base -T, /100Base-TX, RJ45 Connector
Maksimum Görüntü Çözünürlüğü:	\|	1920×1080
Ana Akış:	\|	50Hz: 25fps(1920×1080), 25fps(1280×960), 25fps (1280×720) 60Hz: 30fps(1920×1080), 30fps(1280×960), 30fps (1280×720)
Alt Akış:	\|	50Hz: 25fps(704×576, 640x480,352×288); 60Hz: 30fps(704×480, 640x480,352×240)
Üçüncü Akış:	\|	50Hz: 25fps(1920×1080, 1280×960, 1280×720, 704×576, 640x480,352×288) 60Hz: 30fps(1920×1080, 1280×960, 1280×720, 704×576, 640x480,352×288)
Görüntü Sıkıştırma:	\|	H.264/MJPEG/MPEG4, H.264 encoding with Baseline/Main/High profile
İlgi Bölgesi Kodlama:	\|	Support 24 areas with adjustable levels
Ses Sıkıştırma:	\|	G.711ulaw/G.711alaw/G.726/MP2L2/G.722
Protokoller:	\|	IPv4/IPv6, HTTP, HTTPS, 802.1X, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
Eş Zamanlı kullanıcıya:	\|	Up to 20 users
Üçlü Akış:	\|	Support
Mini SD Kart:	\|	Support up to 128GB Micro SD/SDHC/SDXC card. Support Edge recording
Kullanıcı / Host Seviyesi:	\|	Up to 32 users 3 levels: Administrator, Operator and User
Güvenlik önlemleri:	\|	User authentication (ID and PW), Host authentication (MAC address) IP address filtering
İstemci Arayüzü
Tarih ve Saat Gösterimi:	\|	Time: Week: Date, 6 formats on the Client
İstemci:	\|	Support iVMS-4200
Web Sayfası:	\|	IE 7+, Chrome 18 +, Firefox 5.0 +, Safari 5.02 +, support multi-language
Genel
RS-485 Protocolleri:	\|	HIKVISION, Pelco-P, Pelco-D, self-adaptive
Menü Dili:	\|	English
Güç Tüketim:	\|	100 VAC to 240 VAC, Max.: 60 W
Çalışma Sıcaklığı / Nem oranı:	\|	-40° C to 60°C (-40° F to 140° F)
Boyutlar:	\|	Φ 281 mm × 405 mm (11.06" × 15.94")
Ağırlık (yaklaşık):	\|	Approx. 22 kg (48.5 lb)
Montaj Seçeneği:	\|	DS-1685ZJ-X Wall Mounting Bracket (Included); DS-1686ZJ-X Pendant Mounting Bracket (Optional)
