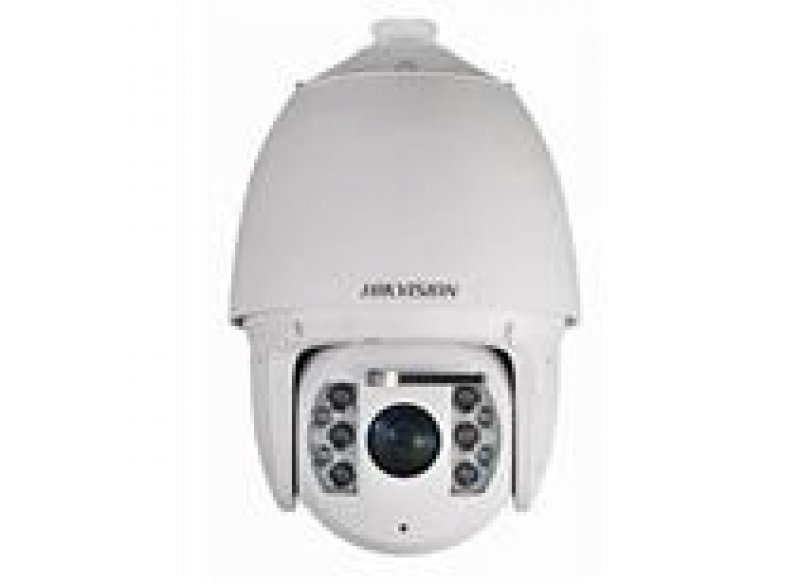

haikon DS-2DF727A series1MP IR WDR Network Speed Dome

ankara speed dome

  • haikon DS-2DF727A series1MP IR WDR Network Speed Dome

haikon DS-2DF727A series1MP IR WDR Network Speed Dome


    Görüntü Sensörü: | 1/3" Type solid State Progressive Scan CCD
    Etkin Piksel: | 1280(H)x720(V)
    İşaret Sistemi: | PAL/NTSC
    Minimum Aydınlatma: | Color: 0.1Lux@(F1.6, AGC On)
    B/W: 0.01Lux@(F1.6, AGC On)
    0 Lux with IR
    Beyaz Dengesi: | Auto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp
    AGC: | Auto/Manual
    S / N Oranı: | ≥ 50dB
    BLC: | ON/OFF
    WDR: | Support
    Objektif Zamanı: | 50Hz:1/25-1/10,000s
    60Hz:1/30-1/10,000s
    Gündüz ve Gece: | ICR
    Dijital Yakınlaştırma: | 16X
    Gizlilik Maskesi: | 24 privacy masks programmable; optional multiple colors and mosaics
    Otomatik Odak: | Auto / Semi-automatic / Manual
    Lens
    Odaksal Uzunluk: | 4.7-84.6mm, 18x
    Yakınlaştırma Hızı: | Approx. 4.2s(Optical Wide-Tele)
    Görüş Açısı: | 59.7-3.6 degree (Wide-Tele)
    Minimum Çalışma Mesafesi: | 10-1,000mm(Wide-Tele)
    Aralık Açıklık: | F1.6 - F2.8
    Pan & Tilt
    Pan Aralığı: | 360°endless
    Pan Hızı: | Pan Manual Speed: 0.1° -160°/s,
    Pan Preset Speed: 240°/s
    Tilt Aralığı: | -2°-90° (Auto Flip )
    Tilt Hızı: | Tilt Manual Speed: 0.1°-120°/s,
    Tilt Preset Speed: 200°/s
    Orantısal Yakınlaştırma: | Rotation speed can be adjusted automatically according to zoom multiples
    Ön Ayar Sayısı: | 300
    Devriye: | 8 patrols, up to 32 presets per patrol
    Otomatik Tur: | 4 patterns, with the recording time not less than 10 minutes per pattern
    Güç kaybolması geri getirme: | Support
    Park Eylemi: | Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan
    PTZ Pozisyonlama Gösterimi: | ON/OFF
    Dondurmak Çerçeve: | Support
    Infrared
    IR Işınlama Mesafesi: | 150m
    IR Işınlama Açısı: | Adjustable by zoom
    Alarm
    Alarm Girişi: | 7 Inputs
    Alarm Çıkışı: | 2 channel relay output, with configurable alarm actions
    Alarm Eylemi: | Preset, patrol, pattern, SD/SDHC card recording, relay output, notifi cation on client
    Girişi ve Çıkışı
    Monitör Çıkışı: | 1.0Vp-p / 75Ω, NTSC (or PAL) composite, BNC
    Ses Girişi: | 1 Mic in/Line in interface
    Line input: 2-2.4V[p-p]; output impedance: 1KΩ, ±10%
    Ses Çıkışı: | 1 Audio output interface
    Line level, impedance: 600Ω
    Ethernet: | 10Base -T, /100Base-TX, RJ45 Connector
    Maksimum Görüntü Çözünürlüğü: | 1280×720
    Ana Akış: | 50Hz: 25fps (1280×720)
    60Hz: 30fps (1280×720)
    Alt Akış: | 50Hz: 25fps(704×576), 25fps (352×288), 25fps (176×144)
    60Hz: 30fps(704×480), 30fps (352×240), 30fps (176×120)
    Üçüncü Akış: | 50Hz: 25fps (1280×720), 25fps(704×576), 25fps (352×288), 25fps (176×144)
    60Hz: 30fps (1280×720), 30fps(704×480), 30fps (352×240), 30fps (176×120)
    Görüntü Sıkıştırma: | H.264/MJPEG/MPEG4, H.264 encoding with Baseline/Main/High profile
    İlgi Bölgesi Kodlama: | Support 24 areas with adjustable levels
    Ses Sıkıştırma: | G.711ulaw/G.711alaw/G.726/MP2L2/G.722
    Protokoller: | IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
    Eş Zamanlı kullanıcıya: | Up to 20 users
    Üçlü Akış: | Support
    Mini SD Kart: | Manual REC / Alarm REC.
    Built-in SD/SDHC Slot, up to 64GB
    Edge recording
    Kullanıcı / Host Seviyesi: | Up to 32 users,3 Levels: Administrator, Operator and User
    Güvenlik önlemleri: | User authentication (ID and PW),
    Host authentication (MAC address)
    IP address filtering
    İstemci Arayüzü
    Kamera Kontrolü: | Pan/Tilt, Zoom, Focus, Click centering, Zoom by mouse dragging, Iris, preset calling and programming, auto mode
    Tarih ve Saat Gösterimi: | Time: Week: Date, 6 formats on the Client
    İstemci: | Support iVMS-4200
    Web Sayfası: | IE 7+, Chrome 18 +, Firefox 5.0 +, Safari 5.02 +, support multi-language
    Genel
    RS-485 Protocolleri: | HIKVISION, Pelco-P, Pelco-D, self-adaptive
    Menü Dili: | English / Chinese
    Güç Kaynağı: | 24V AC
    Güç Tüketim: | Max. 50W
    Çalışma Sıcaklığı / Nem oranı: | -30°C-65°C(-22°F-149°F)(outdoor)
    90% or less
    Koruma Seviyesi: | IP66 standard (outdoor dome)
    TVS 4,000V lightning protection, surge protection and voltage transient protection
    Montaj: | Various mounting modes optional
    Boyutlar: | Φ245×399mm (Φ9.65”×15.71”)(Outdoor)
    Ağırlık (yaklaşık): | 6Kg (13.22 Ibs)
    Montaj Seçeneği: | Long-arm wall mount: DS-1602ZJ;Corner mount: DS-1602ZJ-corner; Pole Mount: DS-1602ZJ-pole; Power box mount:DS-1602ZJ-box
