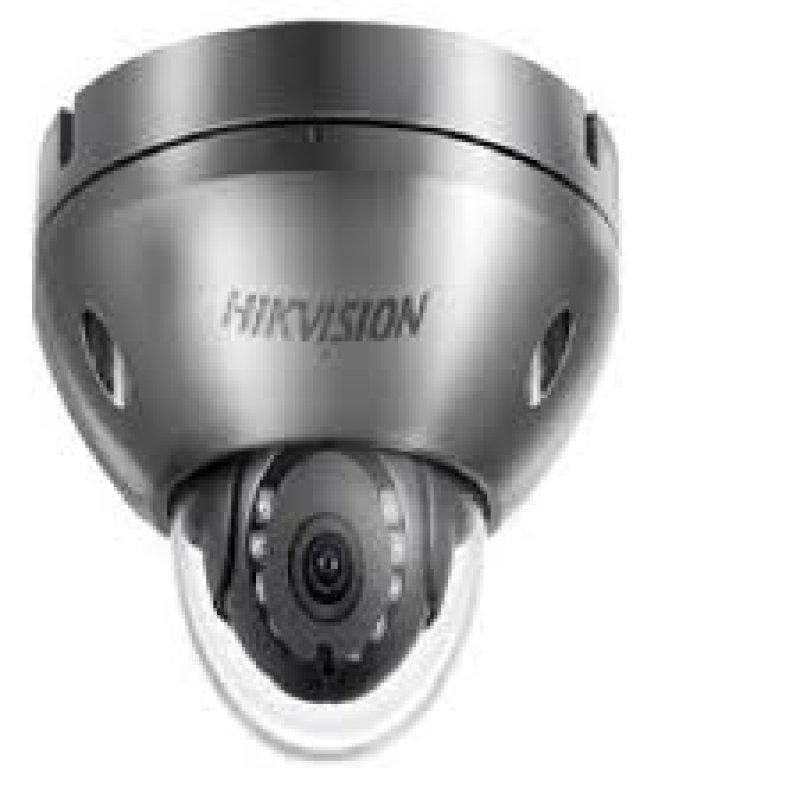

haikon DS-2XC6122FWD-IS2 MP Anti-Corrosion Network Dome Camera

Açıklama

Sıkıştırma Standardı
Görüntü Sensörü:	\|	1/2.7” Progressive Scan CMOS
İşaret Sistemi:	\|	PAL/NTSC
Minimum Aydınlatma:	\|	0.01Lux @(F1.2,AGC ON) ,0 Lux with IR on 0.028 Lux @(F2.0,AGC ON), 0 Lux with IR on
Objektif Hızı:	\|	1 s to 1/100,000 s
Slow shutter:	\|	Support
Lens:	\|	2.8/4/6mm optional
Lens Kurulumu:	\|	M12
Oto-iris:	\|	DC drive
Ayarlanan Aralık:	\|	Tilt: 0° to 75°; Pan: -30° to 30°; Rotate: 0° to 360°
Gündüz & Gece:	\|	IR cut filter with auto switch
Geniş Dinamik Aralık:	\|	120 dB
Dijtal Gürültü Azaltma:	\|	3D DNR
H.264 Türü:	\|	Baseline profile/Main Profile/High profile
Video Bit Hızı:	\|	32Kbps~16Mbps
Ses Sıkıştırma:	\|	G.711/G.722.1/G.726/MP2L2
Ses Bit Hızı:	\|	64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-128Kbps(MP2L2)
Çift Akış:	\|	Yes
Üçüncü Akım:	\|	Yes
Görüntü
Maksimum Çözünürlük:	\|	1920 x 1080
Çerçeve Hızı:	\|	2.8mm lens camera: 50Hz: 25fps (1920 × 1080,1280 × 960,1280 × 720) 60Hz: 24fps (1920 × 1080,1280 × 960,1280 × 720) 4mm and 6mm lens camera: 50Hz: 25fps (1920 × 1080,1280 × 960,1280 × 720) 60Hz: 30fps (1920 × 1080,1280 × 960,1280 × 720)
Ana Akış:	\|	2.8mm lens camera: 50Hz: 25fps (704 × 576, 640 × 480, 352 × 288, 320 × 240) 60Hz: 24fps (704 × 480, 640 × 480, 352 × 240, 320 × 240) 4mm and 6mm lens camera: 50Hz: 25fps (704 × 576, 640 × 480, 352 × 288, 320 × 240) 60Hz: 30fps (704 × 480, 640 × 480, 352 × 240, 320 × 240)
Üçüncül Akış:	\|	2.8mm lens camera: 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288, 320 × 240) 60Hz: 24fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240, 320 ×240) 4mm and 6mm lens camera: 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288, 320 × 240) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240, 320 ×240)
Görüntü İyileştirme:	\|	BLC/3D DNR/Defog
Görüntü Ayarlama:	\|	Rotate mode, Saturation, Brightness, Contrast adjustable by client software or web browser
Bölgesel Kırpma:	\|	Support
BLC:	\|	Support
3D DNR:	\|	Support
Resim Yerleşimi:	\|	LOGO picture can be overlaid on video with 128 × 128 24bit bmp format
Gündüz / Gece Anahtarı:	\|	Auto/Schedule/Triggered by Alarm In
Ağ
Protokoller:	\|	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP
Intelligent
Behavior analysis:	\|	Support
Arayüzü
İletişim Arayüzü:	\|	1 RJ45 10M / 100M Ethernet interface
Alarm:	\|	Support
Alarm Girişi:	\|	1
Alarm Çıkışı:	\|	1
Dahili Depolama:	\|	Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
Reset Butonu:	\|	Yes
Akıllı Özellik-set
Davranış Analizi:	\|	Line crossing detection, Intrusion detection, Region entrance, Region exiting, Unattended baggage, Object removal
Sınır İhlali:	\|	Cross a pre-defined virtual line
Saldırı Algılama:	\|	Enter and loiter in a pre-defined virtual region
Bölge Giriş:	\|	Enter a pre-defined virtual region from the outside place
Bölge Çıkma:	\|	Exit from a pre-defined virtual region
Bırakılan Eşya:	\|	Objects left over in the pre-defined region such as the baggage, purse, dangerous materials
Alınan Eşya:	\|	Objects removed from the pre-defined region, such as the exhibits on display.
Wi-Fi Şartnamesi (-W)
Kablosuz Standartlar:	\|	IEEE802.11b, 802.11g, 802.11n
Genel
Çalışma Sıcaklığı:	\|	-30 °C ~ 60 °C (-22 °F ~ 140 °F) Humidity 95% or less (non-condensing)
Güç Kaynağı:	\|	12 VDC ± 10%, PoE (802.3af)
GÜç Tüketimi:	\|	Max. 5W
Weather Proof:	\|	IP67
IR Aralık:	\|	10 meters
Boyutlar:	\|	Camera: Φ 113 × 77.3 mm (4.45″ × 3.04″) Package: 257 × 167 ×145 mm (10.12″ × 6.57″ × 5.71″)
Ağırlık:	\|	Camera: 1680 g (3.7 lb.)
