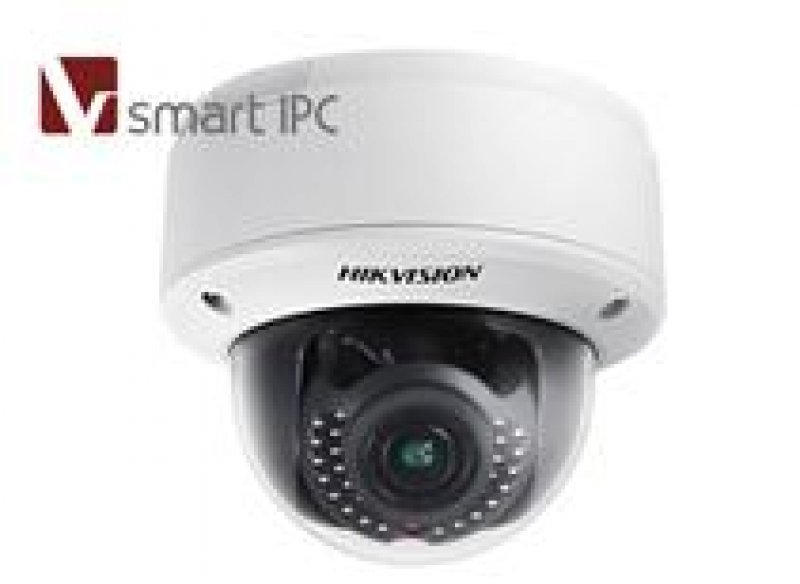

haikon iDS-2CD6124FWD-I(Z)/B

Açıklama

Sıkıştırma Standardı
Görüntü Sensörü:	\|	1/2.8" Progressive Scan CMOS
Minimum Aydınlatma:	\|	0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR 0.014 Lux @ (F1.4, AGC ON), 0 Lux with IR
Objektif Hızı:	\|	1/1s ~ 1/100,000s
Slow shutter:	\|	Support
Lens:	\|	2.8-12mm @ F1.4, angle of view: 113-33.8º -Z: 2.8-12mm @ F1.4, angle of view: 113-33.8°
Lens Kurulumu:	\|	φ14
Gündüz & Gece:	\|	IR cut filter with auto switch
Geniş Dinamik Aralık:	\|	120 dB
Dijtal Gürültü Azaltma:	\|	3D DNR
Video Sıkıştırma:	\|	H.264/MPEG4/MJPEG
H.264 Türü:	\|	Baseline Profile / Main Profile / High Profile
Video Bit Hızı:	\|	32Kbps~16Mbps
Ses Sıkıştırma:	\|	G.711/G.722.1/G.726/MP2L2
Ses Bit Hızı:	\|	64Kbps(G.711) / 16Kbps(G.722.1) / 16Kbps(G.726) / 32-128Kbps(MP2L2)
Görüntü
Maksimum Çözünürlük:	\|	1920 x 1080
Çerçeve Hızı:	\|	50Hz: 25fps(1920 × 1080,1280 × 960,1280 × 720) 60Hz: 30fps(1920 × 1080,1280 × 960,1280 × 720)
Görüntü Ayarlama:	\|	Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser
BLC:	\|	Yes, zone configurable
HLC:	\|	Yes
EIS:	\|	Yes
ROI:	\|	Support
Resim Yerleşimi:	\|	LOGO picture can be overlaid on video with 128x128 24bit bmp format
Gündüz / Gece Anahtarı:	\|	Auto/Schedule/Triggered by Alarm In
Ağ
Ağ Depolama:	\|	NAS(NFS, SMB/HIFS), edge recording
Alarm Trigger:	\|	Face Detection , Defocus Detection , Scene Change, Audio Abnormal, Motion detection, Tampering alarm, Network disconnect, IP address conflict, Storage exception
Protokoller:	\|	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
Güvenlik:	\|	One-key recovery, flash-prevention, three streams, heartbeat, mirror, password protection, video mask, Watermark, IP address filtering, Anonymous access
Sistem Uyumluluğu:	\|	ONVIF, PSIA, CGI, ISAPI
Intelligent
Behavior analysis:	\|	Line crossing, Region entrance, Region exiting, Intrusion, Object removal, unattended baggage
Arayüzü
Ses:	\|	1 x 3.5mm audio input (Mic in / Line in)
İletişim Arayüzü:	\|	1 RJ45 10M/100M Ethernet port, 1 RS-485 interface and 1 RS-232 interface
Alarm:	\|	1 Input/1 Output
Genel
Çalışma Sıcaklığı:	\|	-30 °C ~ 60 °C (-22 °F ~ 140 °F) Humidity 95% or less (non-condensing)
Güç Kaynağı:	\|	12 VDC ± 10%, PoE (802.3af)
GÜç Tüketimi:	\|	Max. 13.5W
IR Aralık:	\|	Approx. 10 to 30 meters
Boyutlar:	\|	Φ 140 × 121.8 mm (Φ 5.51” × 4.80”)
Ağırlık:	\|	1400 g (3.09 lbs)
